Gateway Class Reference

#include <Gateway.h>

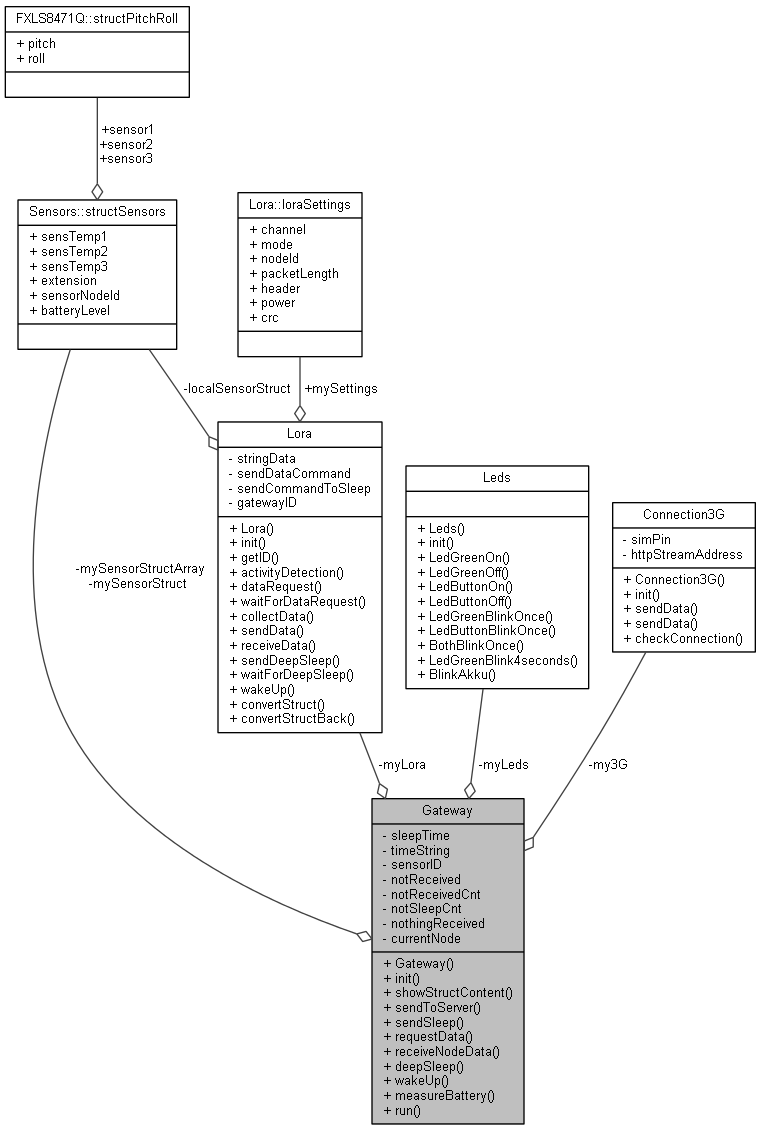

Collaboration diagram for Gateway:

Public Member Functions
	Gateway ()
uint8_t	init (void)
void	showStructContent (uint8_t node)
uint8_t	sendToServer (Sensors::structSensors *dataToSend)
uint8_t	sendSleep (uint8_t ID)
uint8_t	requestData (uint8_t ID)
uint8_t	receiveNodeData (void)
void	deepSleep (void)
int8_t	wakeUp (void)
uint8_t	measureBattery (void)
void	run (void)

Private Attributes
Sensors::structSensors	mySensorStruct
Sensors::structSensors	mySensorStructArray [numberOfNodes]
uint32_t	sleepTime =60
char	timeString [12]
uint8_t	sensorID [numberOfNodes] ={3,4,5}
uint8_t	notReceived =0
uint8_t	notReceivedCnt =0
uint8_t	notSleepCnt =0
uint8_t	nothingReceived =0
uint8_t	currentNode =0
Lora	myLora
Connection3G	my3G
Leds	myLeds

Detailed Description

Definition at line 9 of file Gateway.h.

Constructor & Destructor Documentation

Gateway::Gateway

(

)

This method creats object of Lora and Connection3G

Definition at line 6 of file Gateway.cpp.

Member Function Documentation

void Gateway::deepSleep

(

void

)

Sets gateway into deepSleep mode

Definition at line 98 of file Gateway.cpp.

uint8_t Gateway::init

(

void

)

This method initializes all the components of the sensornode

Returns

0 all settings are done correctly

1 error during settings

Definition at line 11 of file Gateway.cpp.

uint8_t Gateway::measureBattery

(

void

)

This method shuts down the battery charger and measures the battery level

Returns

returns the battery level

Definition at line 27 of file Gateway.cpp.

uint8_t Gateway::receiveNodeData

(

void

)

Receives data from a sensor-node

Returns

0 receiving was successful

1 receiving was unsuccessful

Definition at line 77 of file Gateway.cpp.

uint8_t Gateway::requestData

(

uint8_t

ID

)

Requests data from a sensor-node

Returns

0 request was successful

1 request was unsuccessful

Definition at line 70 of file Gateway.cpp.

void Gateway::run

(

void

)

structures the procedure of the gateway

Definition at line 116 of file Gateway.cpp.

uint8_t Gateway::sendSleep

(

uint8_t

ID

)

Sends to all the sensor-nodes a sleep command

Returns

0 command was successful

1 command was unsuccessful

Definition at line 91 of file Gateway.cpp.

uint8_t Gateway::sendToServer

(

Sensors::structSensors *

dataToSend

)

Uploads all the received data to a web-server

Returns

0 uploading was successful

1 uploading was unsuccessful

Definition at line 84 of file Gateway.cpp.

void Gateway::showStructContent

(

uint8_t

node

)

Shows the content of a received packet from a sensor-node

Definition at line 40 of file Gateway.cpp.

int8_t Gateway::wakeUp

(

void

)

After deepSleep reconfigures all the modules

Returns

0 reconfiguration was successful

1 reconfiguration was unsuccessful

Definition at line 108 of file Gateway.cpp.

Member Data Documentation

uint8_t Gateway::currentNode =0

private

Definition at line 35 of file Gateway.h.

Connection3G Gateway::my3G

private

Definition at line 39 of file Gateway.h.

Leds Gateway::myLeds

private

Definition at line 40 of file Gateway.h.

Lora Gateway::myLora

private

Definition at line 38 of file Gateway.h.

Sensors::structSensors Gateway::mySensorStruct

private

Definition at line 25 of file Gateway.h.

Sensors::structSensors Gateway::mySensorStructArray[numberOfNodes]

private

Definition at line 26 of file Gateway.h.

uint8_t Gateway::nothingReceived =0

private

Definition at line 34 of file Gateway.h.

uint8_t Gateway::notReceived =0

private

Definition at line 31 of file Gateway.h.

uint8_t Gateway::notReceivedCnt =0

private

Definition at line 32 of file Gateway.h.

uint8_t Gateway::notSleepCnt =0

private

Definition at line 33 of file Gateway.h.

uint8_t Gateway::sensorID[numberOfNodes] ={3,4,5}

private

Definition at line 29 of file Gateway.h.

uint32_t Gateway::sleepTime =60

private

Definition at line 27 of file Gateway.h.

char Gateway::timeString[12]

private

Definition at line 28 of file Gateway.h.

---

The documentation for this class was generated from the following files:

• Gateway.h
• Gateway.cpp
